2627149-000-440

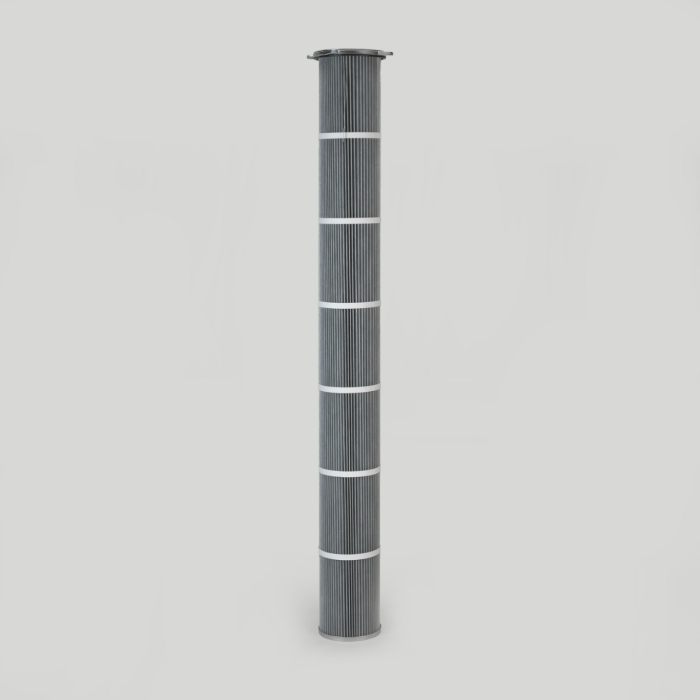

Cartridge Filter with open top end cap with 4 hooks, 300 mm pitch diameter and closed bottom end cap in Polyester Spunbond with PTFE Coating, 216 mm outer diameter x 2000 mm long, Special features: Glued and Dirty and Clean Air Plenum Installation for different brands of cartridge collectors

Diameter (mm)	216
Inner Diameter (mm)	144
Length (mm)	2000
Media	Polyester + PTFE coating
Area (m²)	7.5
Top End Cap Design	Open with 4 Hooks
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Top End Cap in Aluminum and Bottom End Cap in Galvanized Steel
Gasket Position	Above and Below Top End Cap
Max. Temp (°C)	60
Volume (m³)	0.202797
Weight (kg)	7
