2626428

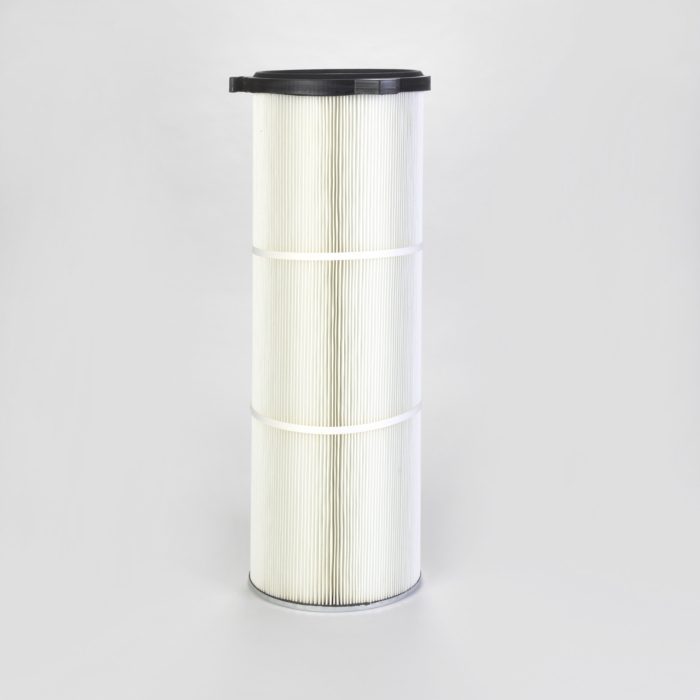

Cartridge Filter with open top end cap with 3 hooks, 366 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 325 mm outer diameter x 1518 mm long including top gasket; Special features: Neutral packaging and Dirty Air Plenum and Clean Air Plenum installation for Series 325 and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	213
Length (mm)	1518
Media	Polyester Class L
Area (m²)	25.2
Top End Cap Design	Open with 3 Hooks Small
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above and Below Top End Cap
Max. Temp (°C)	60
Volume (m³)	0.271656
Weight (kg)	12.5
